GENERAL FEATURES




Icaro cutters are designed for the fast cutting of iron bars.
All internal mechanical components were specifically created so as to make our machines endurable. They are all made of heat-treated steel.
Our cutters are enduring and highly productive. The structure of these machines is produced with modern carpentry materials and their special reduction gears make them particularly strong when cutting.
All the manufacturing process of Icaro cutters is made entirely in house by our technicians, therefore the production of our machines can be modeled after our customers’ requests.







MODEL

(50Hz)
rpm

(50Hz)
kW/HP

(60Hz)
kW/HP
65KG/mm
x1Ø x2Ø x3Ø
85KG/mm
x1Ø x2Ø x3Ø

Kg

cm


C32

90 2,2/3   2,64/3,5 26 - 18 - 14 22 - 16 - 12 470 3 105x61x82


C36

90 2,2/3 2,64/3,5 30 - 20 - 16 26 - 18 - 14 475 3  105x61x82


C42


90 3/4 3,6/5 34 - 26 - 20 30 - 20 - 16 600 4 120x80x96


C52

40 4/5,5   4,8/6,5 44 - 30 - 24 36 - 26 - 22 774  4 130x80x106


C55

40 5,5/7,5  6,6/9 46 - 32 - 26 40 - 30 - 22 781  4 130x80x106


C62

40 7,5/10 CUSTOM 54 - 38 - 32 48 - 32 - 26 905  7 130x80x110


C70

 40  9,2/12,5 CUSTOM 62 - 44 - 34 50 - 38 - 28 1.100  17  145x85x110


C42 D

90   CUSTOM 34 - 26 - 20 30 - 20 - 16  630   120x80x100






TECHNICAL FEATURES



  • Our cutters follow all CE standard European laws as well as worldwide regulations. The quality control procedures performed on our machines abide by ISO9001/2008 norms.   _96A7370.jpg _96A7376.jpg

  All gears are produced out of a single piece of raw material without any welding. They are made of 39-Chrome Nickel steel, which provides endurability and hardenability. They all come with their own serial number in order to guarantee complete traceability.

  _96A7523.jpg cesoia_ingranaggio2.JPG

   Steel made blades of the highest quality are designed for cold-working. Their special shape allows you to re-use them for four times.     _96A7407.jpg _96A7422.jpg

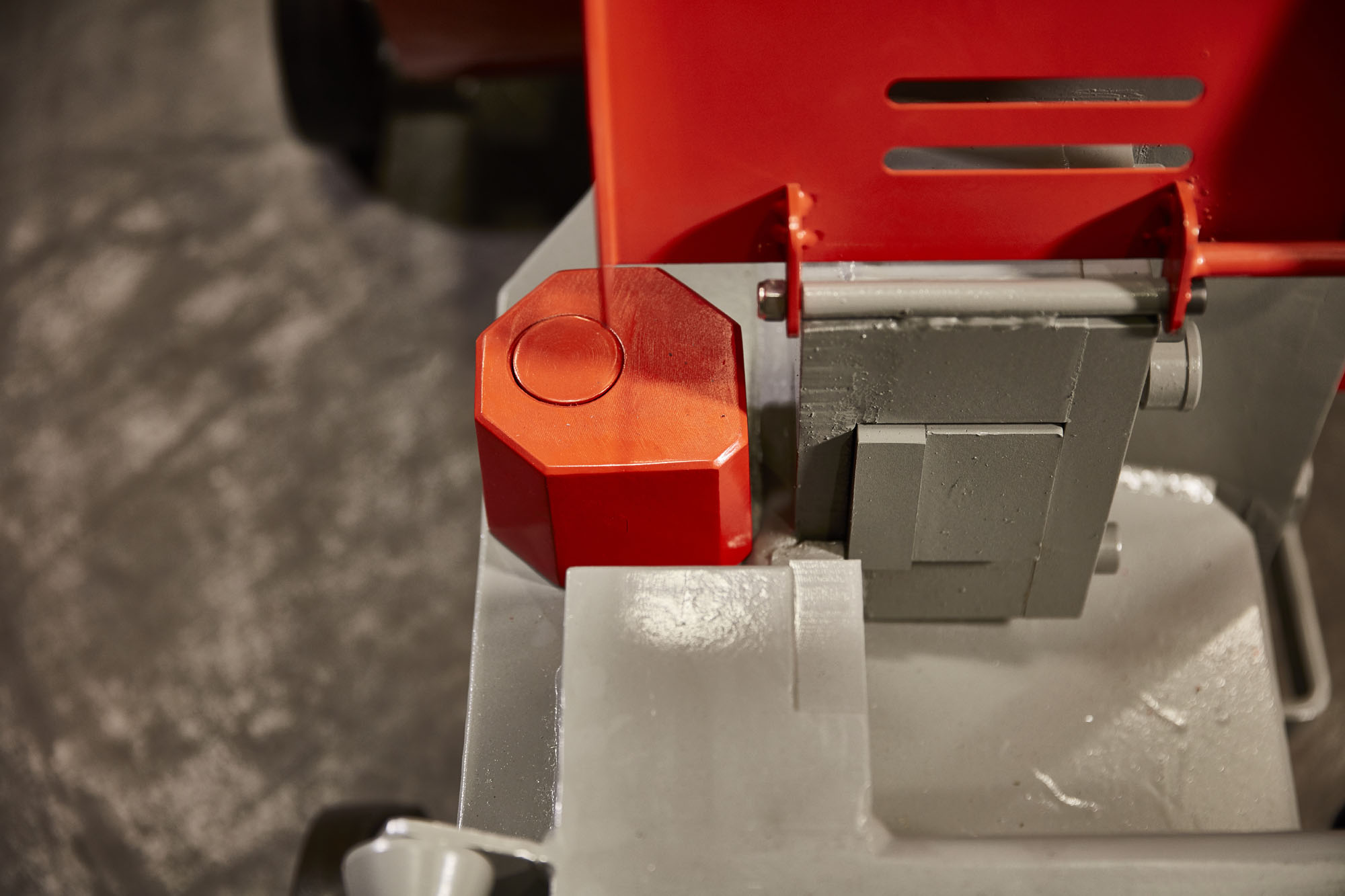

  Adjustable prism bar blocking system.     _96A7373.jpg _96A7414.jpg
